Line Blinds Dimensions – Class 150

ASME Class 150 – Carbon Steel & ASME Class 150 – Stainless Steel

Spectacle Blind
SBL150 & SBL150SS

Spectacle Blind schematic for Dimensions

Paddle Spacer
PS150 & PS150SS

Paddle Spacer schematic for Dimensions

Paddle Blind
PB150 & PB150SS

Paddle Blind schematic for Dimensions

Notes:

•  Higher ASME pressure ratings available

•  Larger sizes available

Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.

Line Blinds Class 150 Dimensions

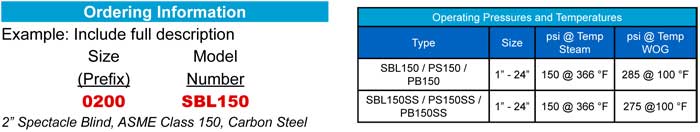

Line Blinds Class 150 Operating Temperatures



For a full page, printable version of this information, please click on the PDF icon.
