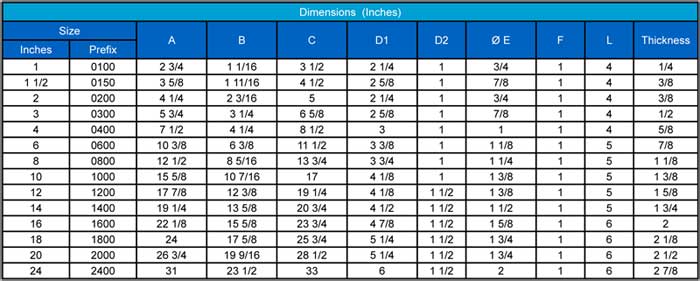

Line Blinds Dimensions – Class 600

ASME Class 600 – Carbon Steel & ASME Class 600 – Stainless Steel

Spectacle Blind
SBL600 & SBL600SS

Spectacle Blind schematic for Dimensions

Paddle Spacer
PS600 & PS600SS

Paddle Spacer schematic for Dimensions

Paddle Blind
PB600 & PB600SS

Paddle Blind schematic for Dimensions

Notes:

•  Higher ASME pressure ratings available

•  Larger sizes available

Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
